Overview

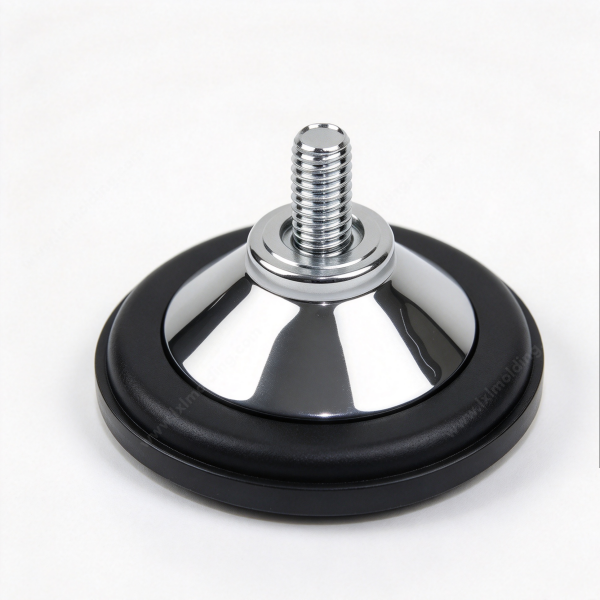

A chrome leveling foot carries a cabinet, a machine or a piece of furniture on a polished body and sets the height with a threaded stud. The body is a tapered cover shell with a bright plated surface, and a black base ring around the bottom edge gives the foot a wide contact face. The stud passes through the centre of the shell and turns in the base, so the foot can be raised or lowered after the unit is in place.
The cover shell encloses the thread above the base, so only a short length of stud stays exposed and the foot reads as a finished hardware part rather than an open bolt.
Because the shell, the base ring and the stud are brought together as one assembly, the shell sits square on the ring and the stud stays concentric with it on every piece.
Our custom leveling foot is a plain pad with an open threaded stud, quoted for the load it carries, while this chrome leveling foot adds a plated cover shell and a black base ring for a visible finish. Where the foot has to sit at a fixed height with no thread at all, our cylindrical support foot bolts through a top mounting hole instead.
Key Features & Benefits
– Plated body — polished chrome finish
– Black base ring — wide floor contact face
– Threaded stud — height set by turning
– Cover shell — encloses the thread above the base

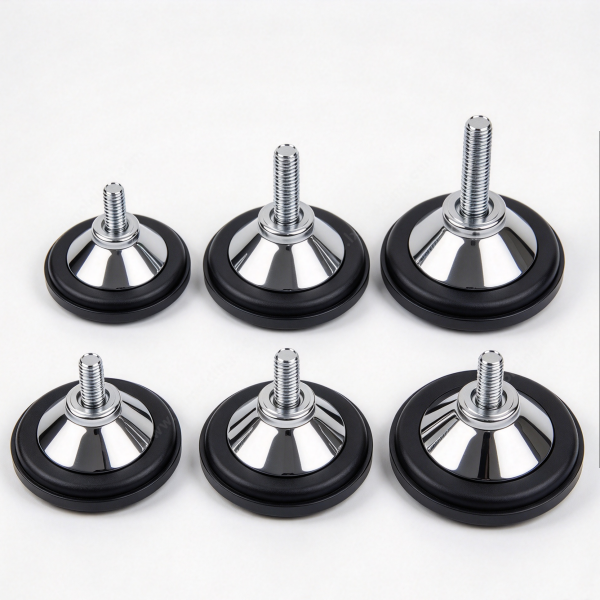

– Stud lengths — supplied in several sizes
Customization Options
Cover shell diameter, shell height, base ring width, stud length and stud diameter are all set by your 3D file. We mold the shell in ABS and other plating grades and finish it in chrome, nickel or a satin tone, with the base ring in black or another colour, and the stud is supplied to the length your assembly needs. A revised chrome leveling foot usually needs only a tool insert change, so a new shell diameter keeps the same base ring.
Quality & Delivery

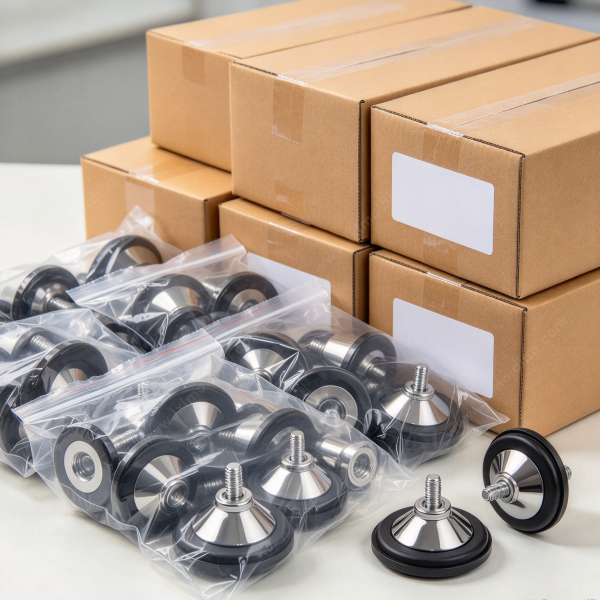

Each chrome leveling foot is checked for shell diameter, shell height, base ring width and stud length, and the plating is inspected for coverage and colour before packing. First articles are sent for approval, so a chrome leveling foot arrives ready to fit. Send your 3D file through our quotation page and we will confirm material, finish and lead time.
Related Capabilities
A chrome leveling foot is molded on our ABS plastic injection molding line, and the same plated finish is applied to our electroplated plastic furniture leg before packing. Where the height must stay fixed instead, our custom leveling foot covers the plain pad version. All of them are produced in house under our injection molding service.
