Overview

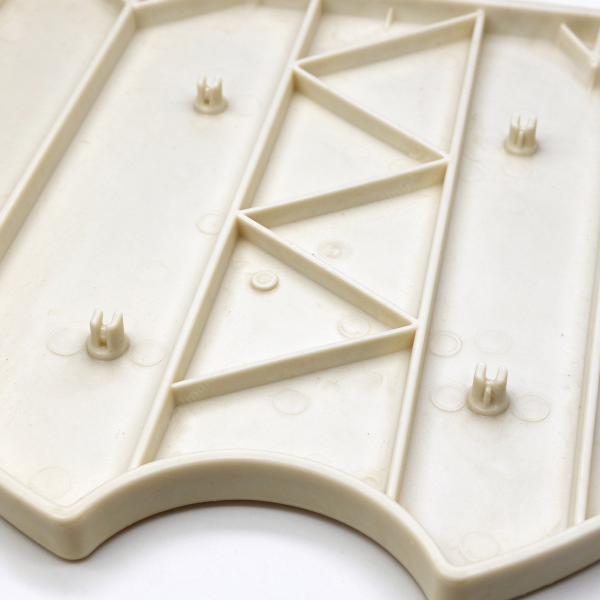

A large irregular panel is a molded panel whose outline is cut to the opening it closes, so the edge departs from a plain rectangle. This one has a broad face, a tapering lower edge with a semicircular notch cut into it, a raised rim all round, and a ribbed back. The ribs run straight down the panel, or a diagonal pattern braces it corner to corner, and bosses with star tops stand on the rib lines.
The ribs carry the load of a large irregular panel. They run from the rim across the back at an even height, so the panel holds its shape over a span, and the face stays flat between them.
It sits with the other panels we mold. Our front panel with cutouts carries openings through a face, the display panel with buttons seats switches, and the recessed equipment plate sets a plate into a frame. This large irregular panel is the one whose outline follows the opening.
Key Features & Benefits
- Outline: the edge molded to the shape of your opening
- Rim: a raised border along the full edge

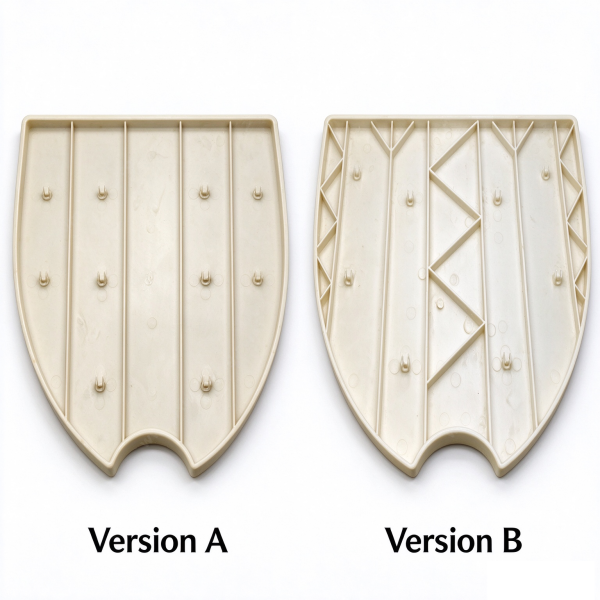

- Ribs: straight or diagonal, from your model
- Bosses: star tops stood on the rib lines
- Face: flat between the ribs
Because a large irregular panel is molded to your 3D file, the outline, the ribs and the bosses repeat cavity to cavity, so every panel in a run fits the same frame.
Customization Options
Outline, rib layout, boss position, notch, resin and color all come from your 3D file, so a large irregular panel is molded for the opening you have.
- Outline: the edge and the notch from your model
- Ribs: straight or diagonal, to your model
- Bosses: position and height from your model
- Color: an off white grade, a shade you match or a two tone split
- Finish: the sheen your 3D file calls for
Quality & Delivery
Tooling for a large irregular panel is cut in our own mold shop, and the first article of every panel is gauged against your 3D file, outline and boss height included, before the run is released.
Mold faces are finished to the sheen your 3D file calls for, the gate is trimmed flush on the back, and the ribs come off even, so the face shows no sink. Lead time is quoted with the unit price and held to the date, and each batch is gauged before packing.
We mold every large irregular panel to your 3D file, so the edge, the ribs and the bosses follow the model. Send the 3D file for a quotation with the tool cost and the unit price.
Related Capabilities
Panels and plates sit beside this large irregular panel. Our ribbed tray runs ribs on a flat floor, and the modular mounting frame holds a lens carrier.
Tooling and molding both run in house, on our mold making floor and our injection molding service presses. Send your 3D file for a quotation.
