Overview

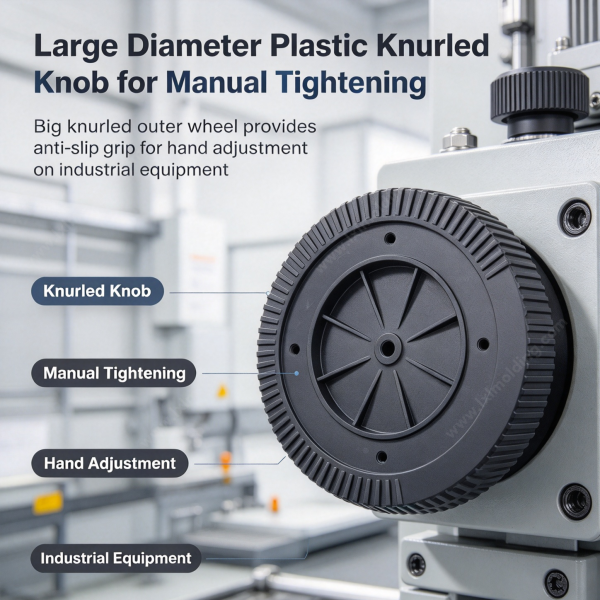

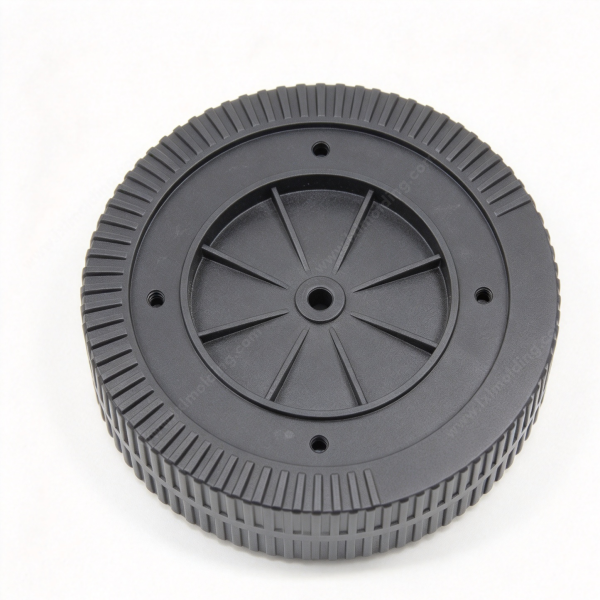

A large knurled knob gives a machine operator a wide grip for tightening a fitting or setting a position by hand. Vertical knurling runs around the full outer edge, so the fingers catch the rim at any angle, and the large diameter turns a stiff thread without a tool. The back face carries radial ribs that stiffen the disc under load, and mounting holes let the knob bolt to a machine panel or a housing, with the centre hole left open for the shaft or the stud.
Because a large knurled knob is molded, the knurling, the radial ribs and the mounting holes are formed in one cycle, so the ribs meet the rim evenly and the hole pattern stays concentric with the centre bore.
Our plastic control knob is a small grip that slides onto a shaft, and our knurled control knob carries a white indicator line for reading a dial. This large knurled knob is the heavy duty version, a wide disc with a ribbed back and mounting holes for a stiff adjustment.
Key Features & Benefits

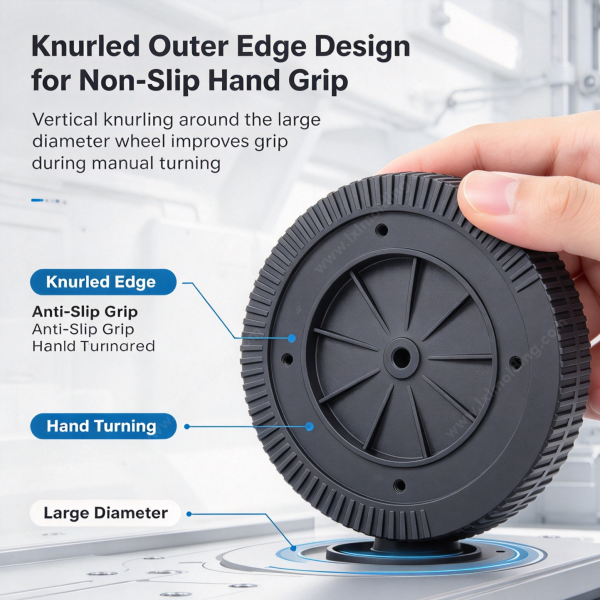

– Vertical knurling — grip around the full edge
– Large diameter — leverage for a stiff turn

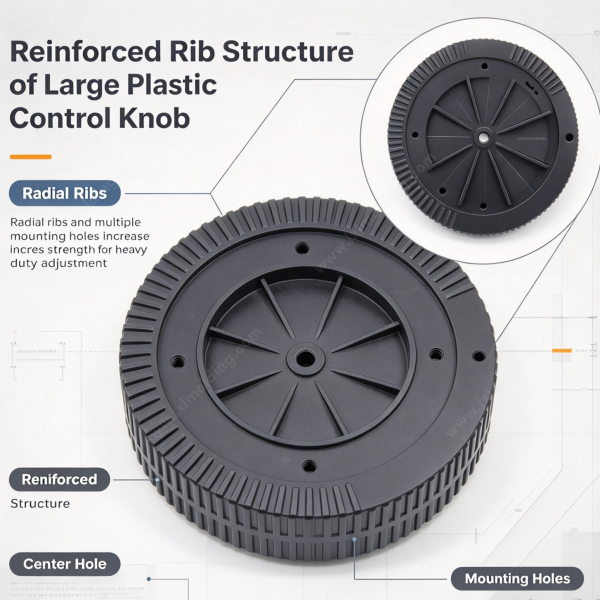

– Radial ribs — stiffen the disc under load

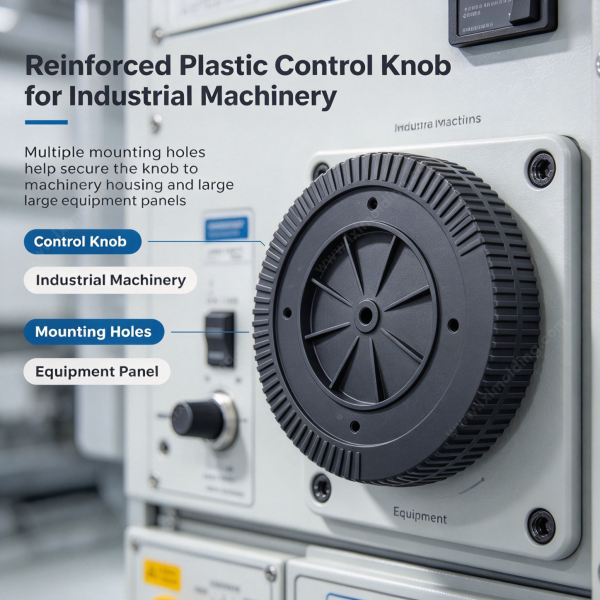

– Mounting holes — bolt the knob to the panel
– Center hole — leaves the shaft or stud open
Customization Options

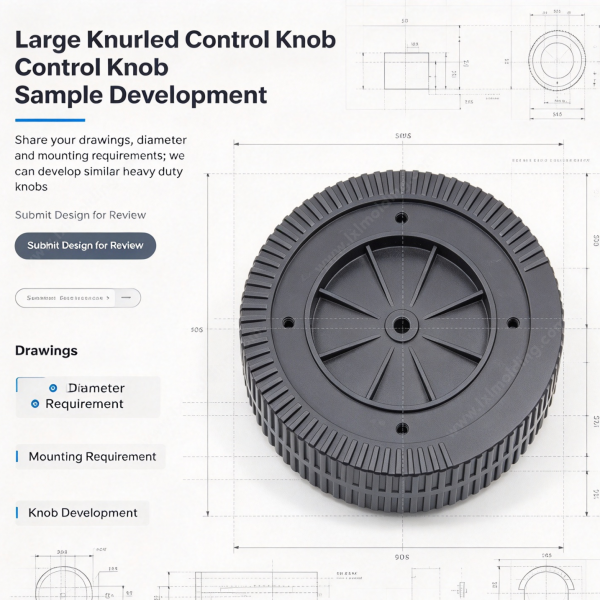

Outer diameter, disc thickness, knurl pitch, rib count, centre hole size and the mounting hole pattern are all set by your 3D file. We mold in PA6, ABS, POM and glass filled nylon in any colour, and can add a degree scale, a pointer line or a metal insert at the centre where the knob has to indicate a position or take a thread. A revised large knurled knob usually needs only a tool insert change, so a new diameter keeps the same hole pattern.
Quality & Delivery
Each large knurled knob is checked for outer diameter, disc thickness, centre hole size and the mounting hole pattern, and the knurl is inspected for an even grip around the rim. First articles are sent for approval, so a large knurled knob arrives ready to fit. Send your 3D file through our quotation page and we will confirm material, colour and lead time.
Related Capabilities
A large knurled knob is molded alongside our plastic control knob, which is the small grip that slides onto a shaft, and our knurled control knob with white indicator, which is used to set a dial. Where the part is a spoked wheel instead, see our yellow plastic handwheel with 3 spokes. All of them are produced in house under our injection molding service.
