Overview

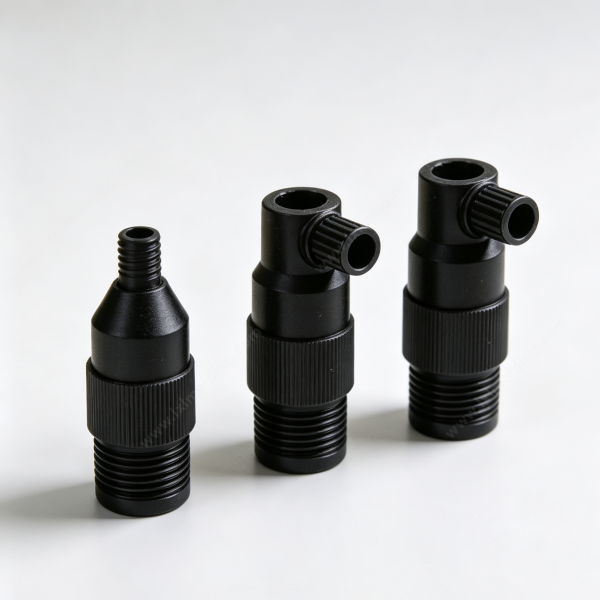

Our threaded plastic nozzle is one part of a molded fitting set that also includes two elbow bodies. The nozzle has a conical body that tapers to a small threaded tip, and every part in the set carries an external thread at the base with a knurled band above it. The knurl gives the fingers a grip for hand tightening, and the elbow bodies turn the outlet off the main axis of the fitting.
We mold the parts strictly to your drawing, and one-stop service is available.
Tooling, molding, the mating parts and the assembly all come from our shop.
Key Features & Benefits
– Conical nozzle body — the taper runs from the base up to a small threaded tip
– Knurled band — the molded ribs give a firm grip for hand tightening
– External base thread — the thread takes a mating port or boss
– Elbow bodies — the outlet turns off the main axis of the fitting
– Ribbed all round — the knurl runs right round each part, so it turns either way
– Straight shank — the body runs true between the thread and the knurl
– One-piece molded parts — no glued or pressed joints in the set
Customization Options
Full OEM & ODM injection molding service. We customize thread size and pitch, nozzle taper and tip bore, outlet angle, knurl pitch, wall thickness and plastic grade including PA, POM, PP and ABS.
We mold the set as separate parts or as a matched family that shares one thread size, and support colour matching with matte or glossy finish.
Tooling design support and DFM feedback on thread form and knurl draft are included before mold making.
Quality & Delivery
Every batch of the threaded plastic nozzle fittings passes dimensional inspection against the customer drawing before shipment, and thread size and tip bore are checked with a gauge on each production lot. First article samples with a full inspection report are provided for approval. Send your 3D file or sample for a quick quotation.
