Overview

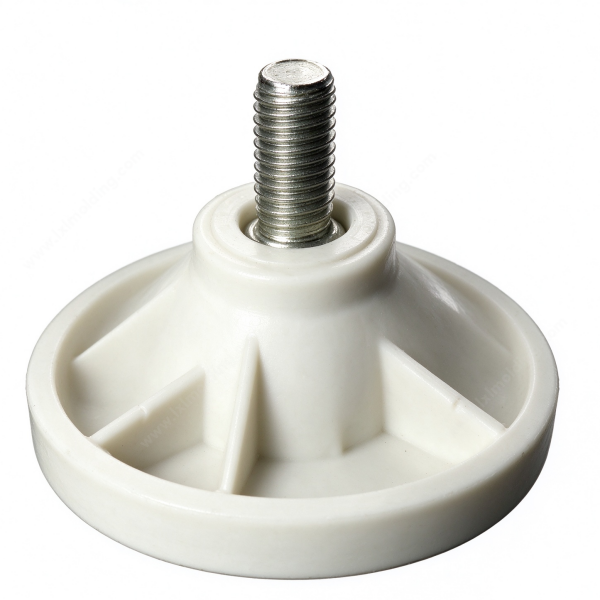

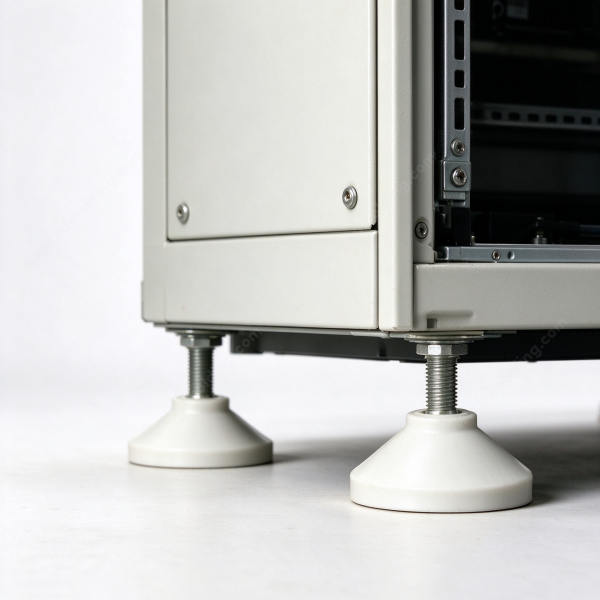

A leveling foot with threaded stud carries a cabinet, a rack or an appliance on a molded base. The base is a round disc with a rolled rim, a raised center boss and ribs running from the boss out to the rim, and the stud seats through a bright metal collar in the boss face. The stud turns up into the unit, so the height is set where the unit stands.
Feet sit beside this part. Our adjustable leveling feet carry a machine frame on molded pads, the custom leveling foot fits a stud or an insert, and the cylindrical support foot takes a plain base under a leg; this leveling foot with threaded stud assembles a plastic base with a metal stud instead.
Key Features & Benefits
- Ribbed base — the ribs run from the boss out to the rim
- Rolled rim — the edge sits flat on the floor
- Metal collar — the stud seats in the boss face
- Threaded stud — the stud turns up into your boss
- Two materials — a molded base under a metal stud
Because a leveling foot with threaded stud is built on a molded base, the outline, the boss and the rib section repeat cavity to cavity.
Customization Options
Base outline, thickness, rib layout, stud thread and color all come from your 3D file, so a leveling foot with threaded stud is made for the unit you already build.
- Base outline — round, lobed or squared to your 3D file
- Base size — set to the load and the floor
- Ribs — sectioned to the load at the boss
- Stud — metal, with the thread and the length your boss takes
- Color — white, gray or another shade, single or two-tone
Quality & Delivery
Tooling for a leveling foot with threaded stud is cut in our own shop, and the first article of every base is gauged against your 3D file — outline, thickness, boss seat and rib section — before the run is released.
The base is molded on our presses and the stud is fitted in the same shop, and each stud is checked in its seat so the foot sits square under the unit. Mold faces are finished to the sheen your 3D file calls for and the gate is trimmed flush with the base. Lead time is quoted with the unit price and held to the date, and each batch is gauged before packing.
We build each leveling foot with threaded stud to your 3D file, so the base, the boss and the seat follow the model. Send the 3D file and we return a quotation with the tool cost and the unit price.
Related Capabilities
Machine feet sit beside this leveling foot with threaded stud. The chrome leveling foot adjusts on a chrome barrel, the rubber anti-vibration foot damps a machine foot, and the cylindrical support foot spreads a leg load.
Tooling and molding both run in house — on our mold making floor and our injection molding service presses. Send your 3D file for a quotation.
